Copper Fitting Manufacturer being a prominent manufacturer dealer and exporter of copper flanges in Dubai offers excellent copper flanges to cater the different requirements of different industries. Copper flanges are precision manufactured for maximum strength, corrosion protection, and performance under pressures and in applications that may be standard, or above average. we are able to provide many varieties of flanges which include the slip-on, weld neck, blind and many more this is to ensure that we meet the needs of our clients. Our base is in Dubai and in offering our services we believe in work reliability and standards as exhibited by global commerce. Choose us to make the copper flanges for your operations that are efficient and durable for your industrial processes.
Copper Flanges manufacture, dealer, Exporter in Dubai :- Properties
Copper flanges are generally rated for high thermal and electrical conductivity hence this makes it possible for these flanges to be used in high performance areas. They are characterized by improved corrosion resistance which implies that they have a long service life particularly in hostile environments, and high durability to support high pressure as well as temperature variations. In addition, copper flanges possess good ductility that makes them to be machined to improved tolerances to enable formation of tight and leak free joints only. Such characteristics qualify them for industrial usage and general operations and manufacturing processes.
- Excellent Thermal and Electrical Conductivity: Copper flanges are more conductive to heat and electricity and are perfectly appropriate for uses where energy transactions are critical. This property is important to guarantee that the systems operate as they ought to especially in regions of high heat or electrical conductivity.
- Superior Corrosion Resistance: Copper flanges also have inherent chemical and heat resistance property that recommend their use where flammable products are being dealt in or where equipment are exposed to moisture or chemical products or salt water. This resistance does a great deal of helping in enhancing the life of the flanges and it also curves the rate of the normal and frequent maintenance or replacement.
- High Durability and Strength: They associated copper flanges with high pressure and temperature and as such was suitable for use in industries. This is all in an effort to make sure that the piping systems are robust, flexible and able to withstand situation that are not friendly for the smooth running of a system.
- Malleability and Machinability: This is because copper is comparatively ductile and therefore; flanges made from copper can be easily drilled or in other words can be developed in to any desired form. This flexibility assures the relevance of the copper flanges and more to the fact that it is possible to make a perfectly tightened fit between the two flanges and in so doing get a perfectly sealed connection which best fits most industrial and commercially connected applications.
- Aesthetic Appeal and Low Maintenance: In addition, copper flanges provides a better looking surface and therefore is used where such appearances count. This is a virtue because the costs of maintaining such machines are low, productivity being given at the onset all along.
Copper Flanges manufacture, dealer, Exporter in Dubai :- Types
Despite its usage there are various types of copper flanges including; Slip-On and Weld Neck flanges provide firm and stiff joints and Blind flanges are used to close the ends of the pipes. Lapped Joints flanges can be fitted by bolted methods that include Threaded and Socket Weld flanges while Orifice flanges are used when a precise flow of the fluid is required. Lap Joint and Raised Face flanges give versatility and better sealing to its copper flanges for various purposes.
Copper Slip-On Flanges in Dubai
The Slip-On type of flanges are collar like which are slipped over the pipe and welded both internally and externally for pipe connections to be secure and airtight. They are relatively easy to install and to align with each other, thus they are applicable in low pressure use across multiple industries.

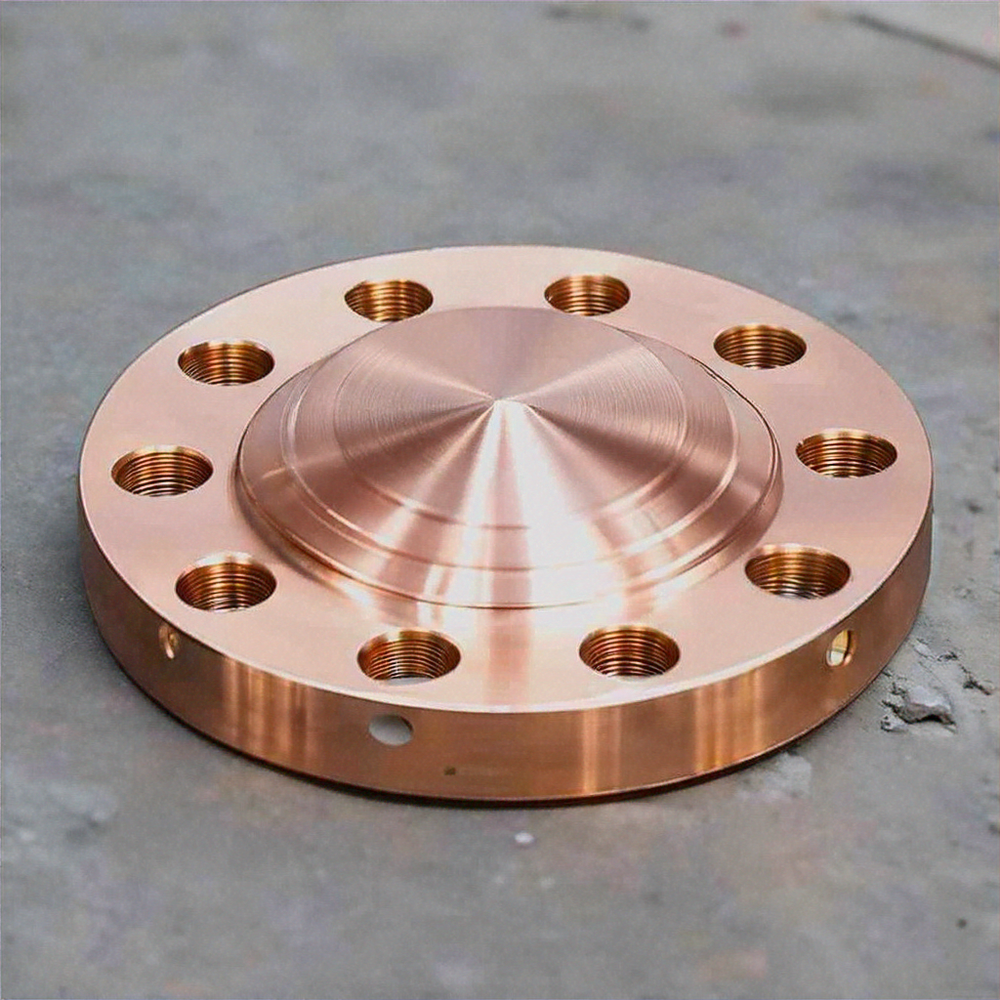

Copper Blind Flanges in Dubai
Closing covers known as blind flanges on pipelines, valves, or pressure vessel opening at one end or both of a pipeline or vessel. For this reason, they give a tight fit which is important when building up the system pressure and avoiding any case of leakage and they are suitable for high pressure applications.
Copper Weld Neck Flanges in Dubai
Weld Neck flanges have a long projection that extends from the Centre of the flange and it gets welded to the pipeline in some manner; it provides with a very strong and best for high pressure and temperature conditions. They are suitable for high risk operations where strength and tight seal is needed so as to avoid drop of the compound in the process.
Copper Socket Weld Flanges in Dubai
Socket Weld flanges are generally used in small diameter pipes and the pipe is first fitted into the flange socket and then welded. It is considered to be very strong and rather effective for use in the high pressure system.
Copper Threaded Flanges in Dubai
Screwed flanges are also called as the Threaded flanges because they are screwed onto the pipe and hence there is no need of Welding. They are most appropriate to be used where welding is not possible and easy and safe to fit.
Copper Orifice Flanges in Dubai
Orifice flanges are used in parallel with orifice plates in order to determine the flow rate in pipelines. They are used where close tolerance flow measurement is needed, and are employed in flow control and metering.
Copper Lap Joint Flanges in Dubai
Lap Joint flanges are used with lap joint stub end and thus offers easy disassembly which is a great advantage. These are particularly useful in systems that need to be frequently serviced or checked since the maintenance and check up can be easily done.
Copper Raised Face Flanges in Dubai
Raised Face flanges have a raised area on the bolt hole and helps in increasing the sealing surface for gasket to produce less leakage. They are suitable for use in several industries, and are generated to work with conventional gasket materials.
Copper Flanges manufacture, dealer, Exporter in Dubai :- Size, Weight , Dimensions Tables
Our tables include the size and weight of copper flanges in addition to the dimensions so as to ensure that you get all of the specific measurements that you need for a given job. Diameters, thicknesses and weights of flanges are specified below these tables and dimensions to facilitate determination of the kind of flange that is most suitable for a specific job. The size weights and dimensions tables for compressors are important in the following cases: Where high pressure is used or where the conditions in an industry require it. Please find below our tables which will assist you in making the right decision concerning your piping systems.
| Nominal Size | Outside Diameter | Min. Thickness | RF Dia. | No. of Bolt Holes | Diameter of Holes | Bolt Circle | SO Bore ID | WN Bore ID | Dia. Hub Base | Dia. of Hub Top | SO LTH | WN LTH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (OD) | (T) | (R) | (BC) | (SB) | (WB) | (HB) | (HT) | (SL) | (WL) | |||
| 1⁄2 | 3.5 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
| 3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.5 | 1.05 | 0.56 | 2 |
| 1 | 4.25 | 0.5 | 2 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
| 11⁄4 | 4.62 | 0.56 | 2.5 | 4 | 0.62 | 3.5 | 1.7 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
| 11⁄2 | 5 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.9 | 0.81 | 2.38 |
| 2 | 6 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
| 21⁄2 | 7 | 0.81 | 4.12 | 4 | 0.75 | 5.5 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
| 3 | 7.5 | 0.88 | 5 | 4 | 0.75 | 6 | 3.57 | 3.07 | 4.25 | 3.5 | 1.12 | 2.69 |
| 31⁄2 | 8.5 | 0.88 | 5.5 | 8 | 0.75 | 7 | 4.07 | 3.55 | 4.81 | 4 | 1.19 | 2.75 |
| 4 | 9 | 0.88 | 6.19 | 8 | 0.75 | 7.5 | 4.57 | 4.03 | 5.31 | 4.5 | 1.25 | 2.94 |
| 5 | 10 | 0.88 | 7.31 | 8 | 0.88 | 8.5 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
| 6 | 11 | 0.94 | 8.5 | 8 | 0.88 | 9.5 | 6.72 | 6.07 | 7.56 | 6.63 | 1.5 | 3.44 |
| 8 | 13.5 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
| 10 | 16 | 1.12 | 12.75 | 12 | 1 | 14.25 | 10.88 | 10.02 | 12 | 10.75 | 1.88 | 3.94 |
| 12 | 19 | 1.19 | 15 | 12 | 1 | 17 | 12.88 | 12 | 14.38 | 12.75 | 2.12 | 4.44 |
| 14 | 21 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14 | 2.19 | 4.94 |
| 16 | 23.5 | 1.38 | 18.5 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18 | 16 | 2.44 | 4.94 |
| 18 | 25 | 1.5 | 21 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18 | 2.62 | 5.44 |
| 20 | 27.5 | 1.62 | 23 | 20 | 1.25 | 25 | 20.2 | 19.25 | 22 | 20 | 2.81 | 5.62 |
| 22 | 29.5 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22 | 3.07 | 5.82 |
| 24 | 32 | 1.81 | 27.25 | 20 | 1.38 | 29.5 | 24.25 | 23.25 | 26.12 | 24 | 3.19 | 5.94 |
