Kanchan Sales copper lugs provide industry-standard measurements to guarantee efficient flow of electricity through circuits. Our lugs are made from high-quality copper to ensure that the electrical conductivity as well as the general durability of the proposed solutions meet the environmental requirements. Designed to specifications and standards from around the globe, they provide reliable performance in different operations. For detailed specifications, refer to the table below:
Types of Copper Lugs:
Copper Lugs in Bahrain

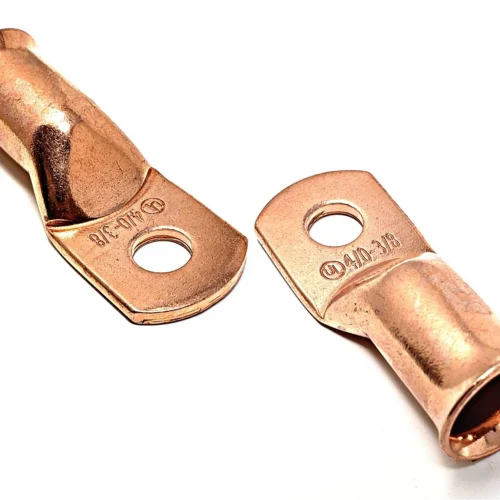

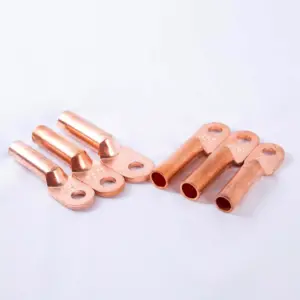

Copper lugs are known electrical connections that are recognized for their conductivity and degree of resistance to corrosion. This makes them have consistent and long-lasting contacts in various uses and to facilitate power transmission.
Copper Compression Lugs in Bahrain

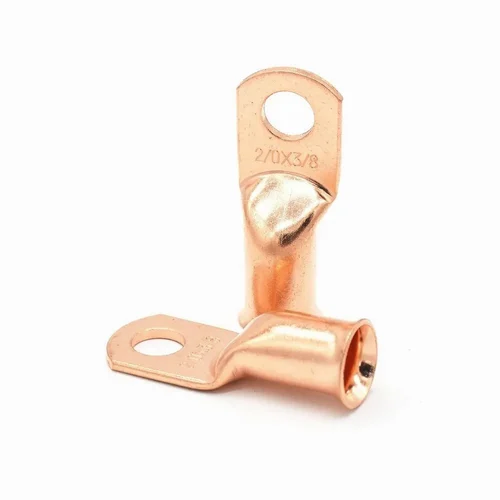

Copper compression lugs are commonly used in electrical connections and still considered the best in the market in the aspect of providing stable fastening to the cables besides offering electrical conductivity in applications of power transmission.
Copper Reducing Lugs in Bharain

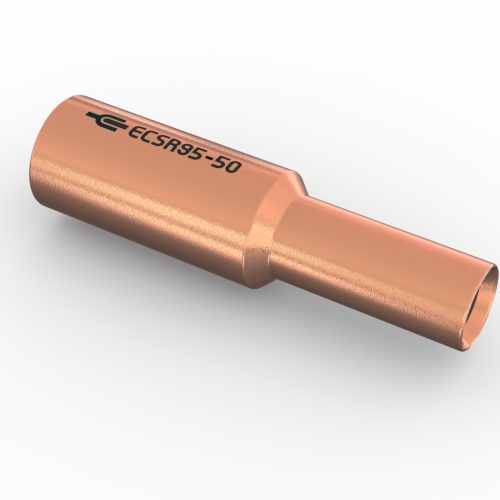

One of the derivatives of the copper cable system is the reducing lugs that are used for joining cables of different diameters. They provide safe and reliable electrical contacts and have a capability of accepting cables of different diameters for flexibility of use.
Copper lugs Specification:
Kanchan Sales manufacturers provide an option of premium copper lugs for terminals in different operations including transmission and distribution of electric power. We make our copper lugs according to the particular standards and therefore achieve the correct performance and reliability. They are produced in multiple sizes and configurations so that to supply the worth of the wiring needs. The high-grade copper used in the fabrication of our lugs enhances their corrosion-resistance to a great extent and makes them highly conductive. Get the best value for your money if you trust Kanchan to supply top quality copper lugs that comply with the industry standards and give you a superb performance in the electrical system network.
| Parameter | Description | Specification |
|---|---|---|
| Material | Copper | ASTM B152, Grade C11000 |
| Type | Compression | |
| Size | Various sizes available, typically | #2 AWG to 1000 kcmil |
| Temperature Rating | 75°C (167°F) | |
| Plating | Tin-plated | ASTM B545 |
| Conductor Type | Stranded or Solid | |
| Installation Method | Crimping | |
| Features | Barrel with inspection hole Embossed markings for size identification UL Listed RoHS compliant Suitable for use with copper conductors |
Features of Copper Lugs
Copper lugs offered by Kanchan Sales boast several key features:
- High Conductivity: Copper lugs are well praised for their high electrical conductivity thus facilitating the power transfers and negligible energy wastage.
- Corrosion Resistance: Being naturally immune to corrosion, it creates lasting application in outdoor and industrial uses for copper lugs.
- Durable Construction: Made from top-notch copper materials, the copper lugs boast of high strength thus making them durable products that will serve their purpose for a long time.
- Versatility: Copper lugs are offered in several sizes, positions, and types to suit different cable diameters and connection types for flexibility in application.
- Ease of Installation: Being versatile and resistant to corrosion, copper lugs are designed for ease of fitting and are crimp-on or solderable, thus ensuring that time spent fitting is kept to a minimum, thereby reducing downtime and the attendant costs of employing personnel for this purpose.
Copper Cable Lugs Dimension Table
| Cable Size | Stud Ø | A | B | C | D | E | F | G | H | L | Part # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5mm² | 5 | 1.8 | 3.7 | 7.5 | 8 | 5.2 | 1 | 4 | 5 | 16 | 1.5-5 |
| 1.5mm² | 6 | 1.8 | 3.7 | 7.5 | 10 | 6.5 | 0.8 | 4 | 6 | 16 | 1.5-6 |
| 2.5mm² | 4 | 2.4 | 4 | 8 | 8 | 4.2 | 1 | 4 | 5 | 18 | 2.5-4 |
| 2.5mm² | 5 | 2.4 | 4 | 8 | 10 | 5.2 | 0.8 | 5 | 6 | 20 | 2.5-5 |
| 2.5mm² | 6 | 2.4 | 4 | 8 | 10 | 6.5 | 0.8 | 5 | 6 | 20 | 2.5-6 |
| 2.5mm² | 8 | 2.4 | 4 | 8 | 11 | 8.4 | 0.7 | 6 | 9 | 26 | 2.5-8 |
| 4mm² | 5 | 3.1 | 4.8 | 9 | 10 | 5.2 | 1 | 5 | 6 | 20 | 4-5 |
| 4mm² | 6 | 3.1 | 4.8 | 9 | 10 | 6.5 | 1 | 5 | 6 | 20 | 4-6 |
| 4mm² | 8 | 3.1 | 4.8 | 9 | 12 | 8.4 | 0.8 | 6 | 9 | 26 | 4-8 |
| 6mm² | 5 | 3.8 | 5.5 | 10 | 10 | 5.2 | 1.2 | 5 | 6 | 23 | 6-5 |
| 6mm² | 6 | 3.8 | 5.5 | 10 | 12 | 6.5 | 1 | 6 | 9 | 27 | 6-6 |
| 6mm² | 8 | 3.8 | 5.5 | 10 | 12 | 8.4 | 1 | 6 | 9 | 28 | 6-8 |
| 6mm² | 10 | 3.8 | 5.5 | 10 | 15 | 10.2 | 0.8 | 8 | 11 | 32 | 6-10 |
| 10mm² | 5 | 4.7 | 7.1 | 10 | 12 | 5.2 | 1.8 | 6 | 7 | 27 | 10-5 |
| 10mm² | 6 | 4.7 | 7.1 | 10 | 12 | 6.5 | 1.8 | 6 | 7 | 27 | 10-6 |
| 10mm² | 8 | 4.7 | 7.1 | 10 | 14 | 8.4 | 1.6 | 7 | 8 | 29 | 10-8 |
| 10mm² | 10 | 4.7 | 7.1 | 10 | 15 | 10.5 | 1.5 | 8 | 10 | 32 | 10-10 |
| 10mm² | 12 | 4.7 | 7.1 | 10 | 18 | 13 | 1 | 10 | 12 | 38 | 10-12 |
| 16mm² | 6 | 5.5 | 7.9 | 19 | 11 | 6.5 | 2.4 | 7 | 9 | 39 | 16-6 |
| 16mm² | 8 | 5.5 | 7.9 | 19 | 14 | 8.4 | 1.7 | 7 | 9 | 39 | 16-8 |
| 16mm² | 10 | 5.5 | 7.9 | 19 | 16 | 10.5 | 1.5 | 8 | 10 | 41 | 16-10 |
| 16mm² | 12 | 5.5 | 7.9 | 19 | 18 | 13 | 1.2 | 10 | 13 | 46 | 16-12 |
| 25mm² | 6 | 7.1 | 9.5 | 21 | 13.5 | 6.5 | 2.4 | 7 | 9 | 41 | 25-6 |
| 25mm² | 8 | 7.1 | 9.5 | 21 | 13.5 | 8.4 | 2.4 | 7 | 9 | 41 | 25-8 |
| 25mm² | 10 | 7.1 | 9.5 | 21 | 16 | 10.5 | 1.9 | 9 | 10 | 44 | 25-10 |
| 25mm² | 12 | 7.1 | 9.5 | 21 | 18 | 13 | 1.6 | 10 | 13 | 48 | 25-12 |
| 35mm² | 6 | 8.4 | 11.5 | 21 | 16 | 6.5 | 3 | 9 | 10 | 45 | 35-6 |
| 35mm² | 8 | 8.4 | 11.5 | 21 | 16 | 8.4 | 3 | 9 | 10 | 45 | 35-8 |
| 35mm² | 10 | 8.4 | 11.5 | 21 | 18 | 10.5 | 2.6 | 9 | 10 | 45 | 35-10 |
| 35mm² | 12 | 8.4 | 11.5 | 22 | 20 | 13 | 2.2 | 11 | 13 | 51 | 35-12 |
| 50mm² | 6 | 9.5 | 12.8 | 22 | 18 | 6.5 | 3.3 | 8 | 10 | 46 | 50-6 |
| 50mm² | 8 | 9.5 | 12.8 | 22 | 18 | 8.4 | 3.3 | 8 | 10 | 46 | 50-8 |
| 50mm² | 10 | 9.5 | 12.8 | 22 | 18 | 10.5 | 3.3 | 8 | 10 | 46 | 50-10 |
| 50mm² | 12 | 9.5 | 12.8 | 22 | 21 | 13 | 2.7 | 11 | 13 | 54 | 50-12 |
| 70mm² | 6 | 11.3 | 14.6 | 22 | 21 | 6.5 | 3.5 | 11 | 13 | 54 | 70-6 |
| 70mm² | 8 | 11.3 | 14.6 | 24 | 21 | 8.4 | 3.5 | 11 | 13 | 54 | 70-8 |
| 70mm² | 10 | 11.3 | 14.6 | 24 | 21 | 10.5 | 3.5 | 11 | 13 | 54 | 70-10 |
| 70mm² | 12 | 11.3 | 14.6 | 24 | 21 | 13 | 3.5 | 11 | 13 | 54 | 70-12 |
| 70mm² | 16 | 11.3 | 14.6 | 24 | 26 | 17 | 3 | 14 | 13 | 61 | 70-16 |
| 95mm² | 8 | 13.5 | 17.4 | 27 | 25 | 8.4 | 4 | 12 | 14 | 60 | 95-8 |
| 95mm² | 10 | 13.5 | 17.4 | 27 | 25 | 10.5 | 4 | 12 | 14 | 60 | 95-10 |
| 95mm² | 12 | 13.5 | 17.4 | 27 | 25 | 13 | 4 | 12 | 14 | 60 | 95-12 |
| 95mm² | 16 | 13.5 | 17.4 | 27 | 25 | 17 | 3.5 | 14 | 16 | 64 | 95-16 |
| 120mm² | 8 | 15.6 | 20.6 | 30 | 30 | 8.4 | 5 | 12 | 14 | 64 | 120-8 |
| 120mm² | 10 | 15.6 | 20.6 | 30 | 30 | 10.5 | 5 | 12 | 14 | 64 | 120-10 |
| 120mm² | 12 | 15.6 | 20.6 | 30 | 30 | 13 | 5 | 12 | 14 | 64 | 120-12 |
| 120mm² | 16 | 15.6 | 20.6 | 30 | 30 | 17 | 5 | 16 | 16 | 72 | 120-16 |
| 150mm² | 10 | 16.7 | 22.2 | 30 | 32 | 10.5 | 5.8 | 16 | 16 | 71 | 150-10 |
| 150mm² | 12 | 16.7 | 22.2 | 32 | 32 | 13 | 5.8 | 18 | 18 | 75 | 150-12 |
| 150mm² | 16 | 16.7 | 22.2 | 30 | 32 | 17 | 5.8 | 18 | 18 | 75 | 150-16 |
| 185mm² | 10 | 18.4 | 24.2 | 32 | 36 | 10.5 | 5.8 |
Advantages and Disadvantages of Copper Lugs
Advantages
- High Conductivity: Copper lugs also available to provide an ease in the electricity flow.
- Corrosion Resistance: They are able to endure environmental forces, leading to increased durability.
- Durable Build: Copper lugs have been used for a very long time and are known to be strong and durable.
- Versatile Options: There are many types and sizes to cater for different uses available in the market.
- Simple Installation: Its efficiency is evidenced by the time shrinkage they cause in installation and the efforts required.
Disadvantages
- Higher Cost: Frequently copper lugs are possibly more costly in comparison to other options.
- Heavier Material: Copper has good properties and applications, but its weight can pose challenges when it comes to manipulation.
- Oxidation Potential: However, the desire is not irreversible and copper can corrode given sufficient time and appropriate conditions.
- Theft Risk: Copper is relatively valuable and may require some form of protection against theft.
- Flexibility Constraints: Using copper lugs might be disadvantageous as they are sometimes rigid in some uses.
