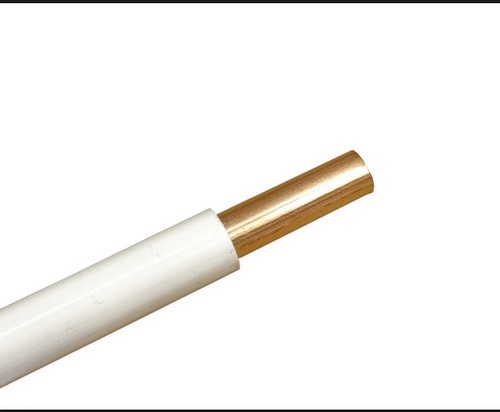

Copper Fitting Manufacturer is elated for being the go-to source for PVC Coated Copper Pipes in Israel. Our pipes and tubes are made to measure in order to offer the very best product, which guarantees optimal performance levels. Due to its high resistance to corrosion and durability of these pipes they are widely used in industries as well as homes. Being customer-oriented, today we have a well-developed market in Israel since we respond to all the demands and do not deviate from international practices.
PVC Coated Copper Pipes & Tubes Manufacturer and Exporter in Israel :- Types
Our PVC Coated Copper Pipe products include a variety of pipes that can suit a wide variety of applications. These two are developed to work in certain conditions, and all are very reliable and efficient for commercial and domestic applications.
Soft PVC Coated Copper Pipe
These pipes are normally very flexible and can therefore be used in applications where installation of the pipes may involve complex and tricky movements or perhaps where adjustments are often needed. They are predominantly used in refrigeration and air conditioning systems because of flexibility.
Hard PVC Coated Copper Pipe
These pipes are infamous for their more structural and systematic design these pipes are the most durable are ideal in conditions high pressure such as those in gas and industries in pipe lines. That way, their strength helps to avoid their frequent use and thus subsequent wear and tear.
PVC Coated Copper Pipes in Israel :- Properties
PVC Coated Copper Pipes are known for their remarkable physical and chemical characteristic and thus can fit in the industrial buildings as well as households in Israel. High durability, flexibility and resistance to corrosion give added value and increased lifetime even under harsh conditions. These properties are crucial to ensuring reliability and performance in applications that are most sensitive.
Corrosion Resistance : PVC coating helps to protect the copper pipes by covering it and denying the most detrimental conditions such as moisture and exposure to chemicals. Such a tactic guarantees long-term adhesion and high performance in states with high humidity or other rather unfavorable working conditions.
Durability : These pipes are very durable since they are made from the tough union of copper and PVC. The can afford high pressures and temperatures, thus providing a fairly long operational life and improved resistance to precisely conditions.
Thermal Stability : As superior thermal conducing medium, these pipes effectively manage temperature flow which makes them suitable for use in HVACR systems. The enhancement of their performance is brought about by incorporation of PVC coating to provide insulation.
Flexibility : The PVC Coated Copper Pipes offer easy bending and shaping requirements that fit complex installations. This flexibility leads to lowering of installation time and cost of labor, while at the same time guaranteeing a more secure connection.
UV Resistance : While choosing the PVC material used to coat the wire, UV resistance was incorporated to avoid its degrading when exposed to light. This option is is somehow very helpful for outdoor usage, especially in the hot climate of the region, that is Israel.
Leak-Proof Design : Accurate manufacturing also compels a free of leak design hence the chances of frequently requiring maintenance are minimized while being assured of the gas distribution more especially and fire safety .
PVC Coated Copper Pipes Specification, Sizes, Grades :
PVC Coated Copper Pipes can be ordered in various size, weight and dimension to suit the requirement of different industries as well as domestic use. These range assure you can easily fit installations into various systems, from multiple smaller fridge installations, up to complicated HVAC installations. Customers are in a position to choose the right specifications for each of their individual applications so as to enjoy the efficiency of each application.
| Standards | EN13348/ BS EN 1057 |
| Size | 6mm to 108 mm |
| Length | 3 meter |
| Tensile Strength | 220 Mpa |
| P.V.C Thickness | 0.014”to 0.059” |
| Material | Copper |
| Application | Gas Handling |
PVC Coated Copper Pipes Weight Chart :
| Type | Size d2 t2/ d1 t1 | O.D. of the tube d1/d2/d3 | Thickness of Insulator t1/t2/t3/t4 | Length | Material | Weight Pounds/feet |
|---|---|---|---|---|---|---|
| P2320 | 1/4-0.032 3/8-0.032 | 1.02-0.87-1.89 | 0.35-0.2 | 30ft ~100ft | 0 | 0.233 |
| P2330 | 1/4--0.032 1/2--0.032 | 1.30-0.87-2.17 | 0.394-0.2 | 30ft ~ 100ft | 0 | 0.286 |
| P2420 | 1/4-0.032 3/8-0.039 | 1.42-0.87-2.29 | 0.394-0.2 | 30ft ~ 100ft | 0 | 0.39 |
| P2520 | 1/4--0.032 5/8--0.032 | 1.42-1.02-2.44 | 0.394-0.2 | 30ft ~ 100ft | 0 | 0.44 |
| P3620 | 3/8--0.0329 3/4--0.039 | 1.54-1.02-2.56 | 0.394-0.2 | 30ft ~ 100ft | 0 | 0.569 |
| P4620 | 1/2--0.032 3/4-0.039 | 1.54 1.30 2.84 | 0.394-0.2 | 30ft ~ 100ft | 0 | 0.629 |
PVC Coated Copper Pipes Chemical Composition:
| Copper Pipe (Incl. Silver) | 99.85% Min. |
| Phosphorus | 0.013 to 0.5% |
| Total Impurities | 0.06% Max. |
Mechanical Property Of PVC Coated Copper Pipes:
| Density | 8.89 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | Psi – 1,15,000 , MPa – 790 |
| Yield Strength (0.2%Offset) | Psi – 52,000 , MPa – 355 |
| Elongation | 40 % |
PVC Coated Copper Pipes Physical Property:
Standard | Copper No. | Chemical Composition | Mechanical Properties | ||||
|---|---|---|---|---|---|---|---|
| CU% | P% | Temper | Tensile strength (Mpa) | Elongation(%) | Average Grain Size (mm) | ||
| ASTM B280/68 | C12200 | 99.9 | 0.015 to 0.040 | >60 | >205 | >40 | >0.040 |
| >50 | >245 | ||||||
PVC Coated Copper Pipes :- Applications
PVC Coated Copper Pipes serve a very important position in the Israel General and Industrial areas. Owing to their high durability and efficiency, they are useful in sectors such as in industrial markets as well as the basic domestic ones. It further improves safety, efficiency and conveniences in the different realms of human life.
Industrial Applications
HVAC Systems : These pipes effectively control temperature in heating and cooling processes with energy efficiency in use of commercial and residential buildings.
Oil and Gas Industry : For purposes of conveying fluids and these gases, these pipes greatly enhance safety because they do not leak and are designed to operate at high pressures.
Refrigeration Systems : Because they have good thermal conduction coefficients, they play an important role in regulating the temperature in refrigeration compartments.
Fire Safety Systems : These pipes guarantee high reliability in fire suppression systems since these pipework withstand high temperatures during fire incidences.
General Applications
Residential Plumbing : Ideal for water supply systems, these pipes will guarantee leakages, durability in our homes.
Solar Energy Systems : They are in solar water heaters; they transfer heat well, through the structure and are resistant to outdoor elements well.
Fire Safety in Homes : These pipes improve fire fighting systems which creates a comfort zone in homes.
Garden Irrigation : It is long lasting and does not leak, it is commonly used in sprinkler systems for watering the crops hence sufficient water supply.
Automotive Sector : These pipes apply in vehicle cooling systems so as to provide efficiency for cooling in order to prevent overheating.
PVC Coated Copper Pipes :- Advantages
- Enhanced Durability : PVC coating acts as safeguards to copper pipes because it shields them from any external influence.
Versatility : can be used in various industries and thus for various households. - Cost-Effective : It is considerably cheaper in the long run because it requires very little servicing, and can last longer than any synthetic material.
- Safety : Design ensures against leaks makes it safe for use in the transportation of both gases and fluids.
- Environmentally Friendly : As far as we are concerned, we understand that recyclable materials have a role to play in sustainable development.
